ATV, Motorcycle, and Snowmobile
Specifications

Online parts and tuneup reference guide for all
major models updated annually
Covers 1977 through current year

For Unlimited Access

10-day free trial period

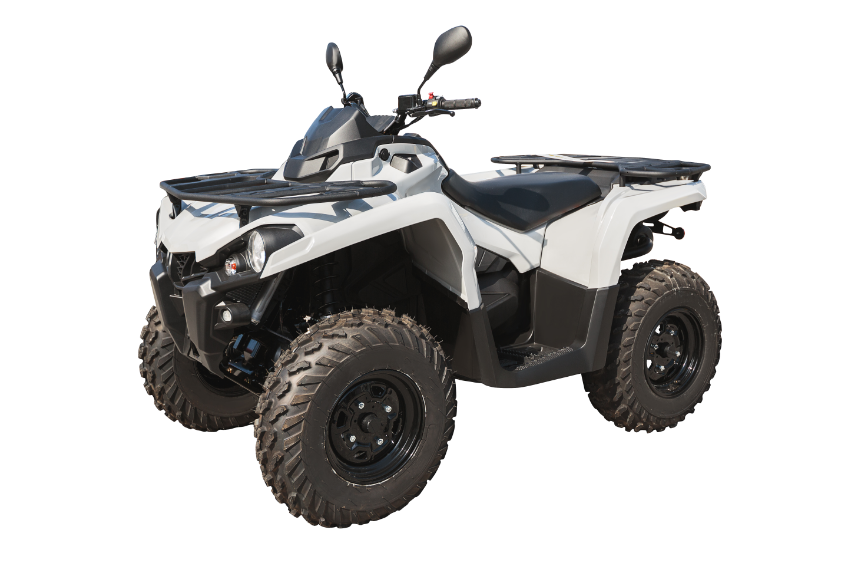

ATV

Arctic Cat Bombardier
Can-Am Honda Polaris
Suzuki Yamaha

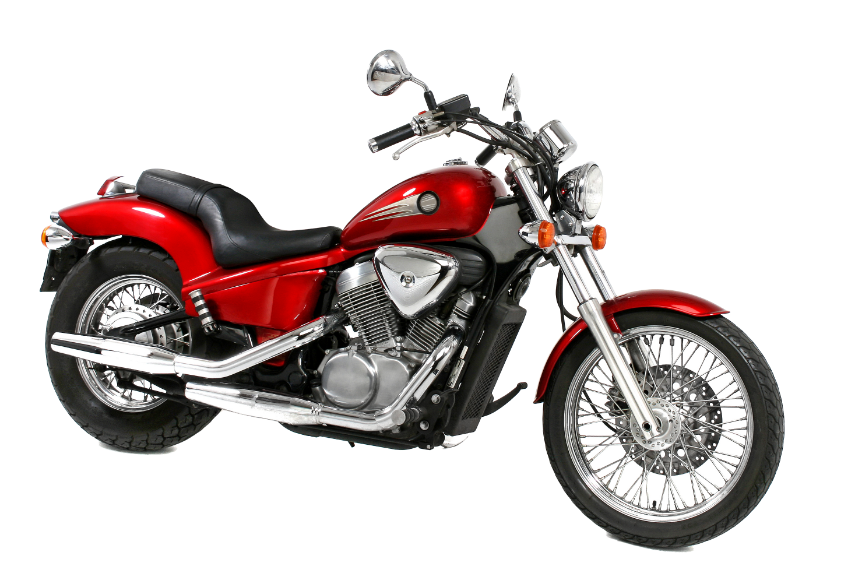

Motorcycle

BMW Can-Am Harley Davidson
Indian Honda Kawasaki KTM
Suzuki Victory Yamaha

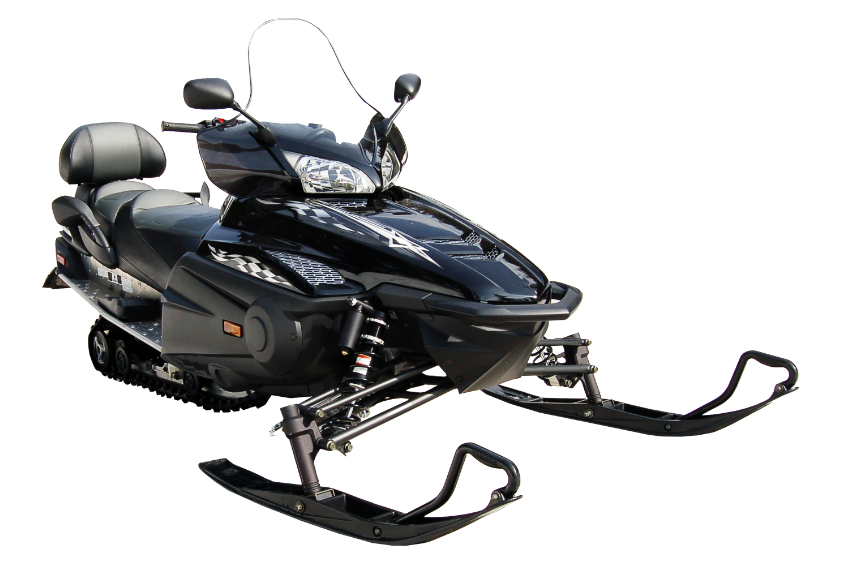

Snowmobile

Arctic Cat Polaris
Ski-Doo Yamaha

What's Inside

2016 Harley-Davidson FLHTCUTG
Ultra Tri Glide 103 LC

TRIKE MODELS
*Oil level set using HD Fork Oil Level Guage or from top of Fork Tube

  • Front Tire: MT90B16
  • Rear Tire: P205/65R15
  • Engine Oil (cc/ml): 3800
  • OEM oil filter: 63798-99A
  • Valve clearance internal (mm): HVA
  • Valve clearance external (mm): HVA
  • OEM or YUASA battery: YIX30L-BS
  • Fork oil (cc/ml): 770/96mm*
  • Fork notes:
  • Transmission oil (cc):
  • Final drive: Belt
  • Final drive oil: -
  • Fuel or float (mm): EFI
  • OEM or NGK spark plug: HD6R12
  • Plug gap (mm): 1
2012 Arctic Cat 425 I Core
  • Front Tire: 25x8-12
  • Rear Tire: 25x10-12
  • Engine oil (cc/ml): 2800
  • OEM oil filter: 0812-034
  • Valve clearance internal (mm): .076-.127
  • Valve clearance external (mm): .152-.203
  • OEM or YUASA battery: YTX20L-BS
  • Transmission oil (cc):
  • Final drive oil: F275/R250
  • Drive system: SHAFT
  • Carb float Level (mm): EFI
  • OEM or NGK spark plug: CR7E
  • Plug gap (mm): .7-.8
1999 Yamaha PZ480STC Phazer
Mountain Lite

("C" - MODEL YEAR)
FOR CORRECT CLUTCH ALIGHMENT USE ALIGNMENT BAR

  • Model Number: 8BH-012934
  • Drive belt number: 87X-17641-00
  • Carb main jet: 143.8
  • Carb pilot jet size: 95
  • Carb needle number - clip setting: -
  • Carb float level (mm): 11.5
  • OEM Track wide (in): 15
  • OEM Track long (in): 136
  • Clutch centre (mm): 268.5
  • Clutch sheave offset (mm): 13.5
  • Gear ratio: 16/35
  • OEM or NGK spark plug: BR9ES
  • Plug gap (mm): .7-.8
